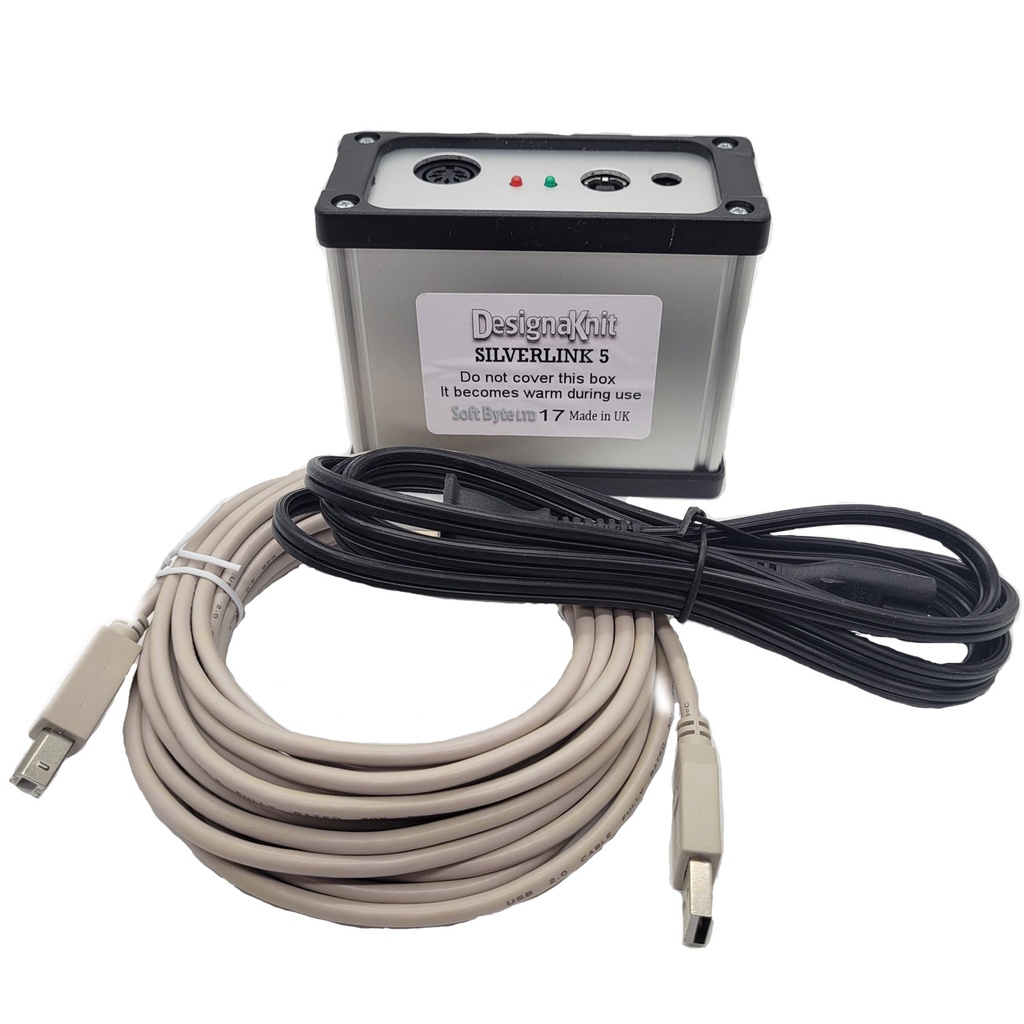

Silver Reed Direct Link 5 ( Silver Link 5 )

The SilverLink 5 connects via the Silver Reed curl cord to the main carriage, lace carriage, or the AG50 intarsia carriage on the Silver Reed electronic machines, and also on the Knitmaster 550, 560, and 580 machines. It also connects to a USB port on the computer.

These links all enable downloading of stitch patterns from DesignaKnit to the PE1 memory, and uploading from the PE1 memory to DesignaKnit. Intarsia patterns may be downloaded to the PE1 for knitting with the AG50 carriage.

These links connect DesignaKnit to machines manufactured by Silver Seiko or Knitmaster. We do not currently offer a cable link for the Singer machines manufactured by Superba (however please see the ScreenLink for those machines).

Intarsia knitting with the AG50 carriage is fully supported.

The SilverLink 5 has its own processor and memory and has replaced the earlier SilverLink 1 and 2, which were discontinued because they are unsuitable for recent versions of Windows.

This group of knitting machines do not have any memory, and no separate stage of downloading the pattern is required. The pattern is automatically transferred to the SilverLink memory at the start of interactive knitting.
